Tube preamplifiers
Tube pre-amplifiers Single-Ended (class A)

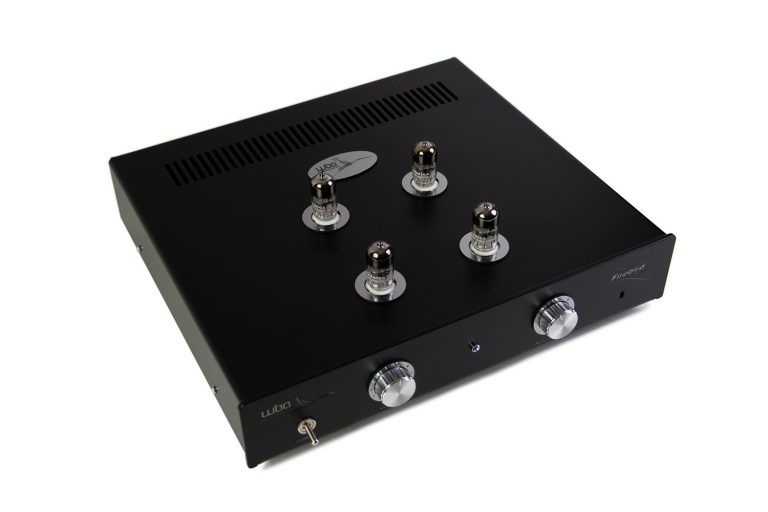

Firebird Balanced
Preamp Dual Mono
Firebird Balanced – the highest model of the Firebird preamplifier lines supporting balanced signals. The preamp is built on the basis of two fully reinforced modules separated from each other. In this solution, two electron tubes ECC88 Gold Lion work in each channel, and in the whole device – four
Type: tube, class A, triode, Dual Mono
Amplitude of input voltage: 2 V – 12 V (max)
Input impedance: 50k Ω
Output impedance: 85 Ω
Tubes: 4 x ECC88 Gold Lion
Power consumption: 40W
Amplitude of input voltage: 2 V – 12 V (max)
Input impedance: 50k Ω
Output impedance: 85 Ω
Tubes: 4 x ECC88 Gold Lion
Power consumption: 40W
from $1 220 Read more
Firebird
Preamp Dual Mono
Firebird – tube preamplifier designed to work with line signals (eg from CD, DAC etc.) Its audio track (100% tube) is based on two ECC88 Gold Lion tubes.
Type: tube, class A, triode, Dual Mono
Amplitude of the output voltage: 2 V – 12 V (max)
Input impedance: 50 kΩ
Output impedance: 85 Ω
Tubes: ECC88 Gold Lion x 2
Power consumption: 20W
Amplitude of the output voltage: 2 V – 12 V (max)
Input impedance: 50 kΩ
Output impedance: 85 Ω
Tubes: ECC88 Gold Lion x 2
Power consumption: 20W
from $660 Read more

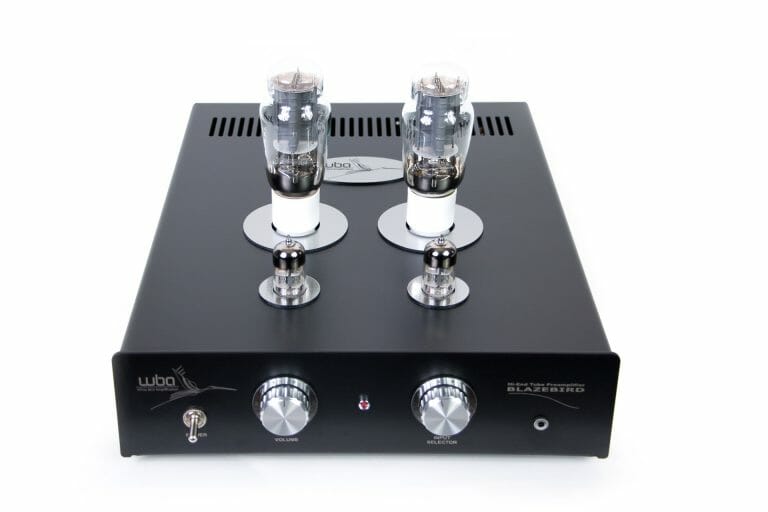

Blazebird
Preamp Dual Mono
Blazebird Dual Mono – working in the mode of two completely separated audio tracks and power supply full tube preamplifier designed to work with line signals (eg from CD, DAC, etc.) the track is based on ECC88 Gold Lion and 2A3 EH Gold tubes.
Type: tube, class A, triode, Dual Mono
Amplitude of the output voltage: 2 V – 12 V (max)
Input impedance: 50k Ω
Output impedance: 85 Ω
Tubes: ECC88 Gold Lion x 2, 2A3 x 2
Power consumption: 50W
Amplitude of the output voltage: 2 V – 12 V (max)
Input impedance: 50k Ω
Output impedance: 85 Ω
Tubes: ECC88 Gold Lion x 2, 2A3 x 2
Power consumption: 50W
from $1 499 Read more
Phoenix
Source Driver
Phoenix – a module that controls signal sources including those from gramophone MM cartridges. The signal from the phono input is fed to the active electronic system, which is responsible for voltage gain and equalization correction in accordance with the international RIAA standard.
Type: passive + optional Phono Op-Amp section OPA2111
Phono input impedance: 47.5 kΩ
Phono output impedance output: < 100Ω
Phono section input amplitude: 1 mV – 10mV (max)
Phono power supply: 2 x 12VDC
Power consumption: 5W
Phono input impedance: 47.5 kΩ
Phono output impedance output: < 100Ω
Phono section input amplitude: 1 mV – 10mV (max)
Phono power supply: 2 x 12VDC
Power consumption: 5W
from $250 Read more
